How to Select a Molded Inductor for High-Density Power Applications

High-density power designs leave little room for components that do not match a circuit’s electrical and thermal requirements precisely. As board space shrinks and current demands rise, the process of selecting an inductor becomes less about finding a part that “fits” and more about comparing specific parameters against the operating conditions of the circuit. For molded inductors, this generally means reviewing inductance, current ratings, resistance, temperature range, and package size together rather than in isolation.

This article walks through these parameters and how they relate to one another when narrowing down a molded inductor for a high-density power application.

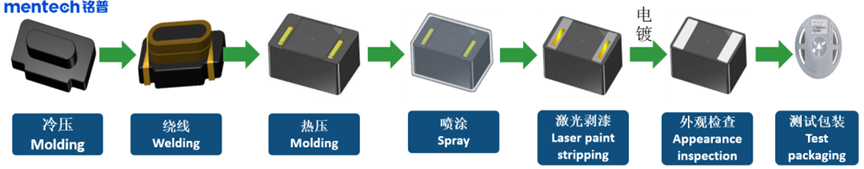

Starting with Inductance and Tolerance

Inductance value is usually the first parameter engineers check, since it is tied directly to how a component behaves within a given switching frequency and ripple current target. Molded inductors are typically manufactured with a tolerance band around the nominal inductance value, commonly around ±20%, which needs to be accounted for during circuit simulation rather than assumed to be exact.

Datasheets from manufacturers such as Mentech list this tolerance alongside the nominal value for each part number, since actual inductance can vary from unit to unit within that stated range under real operating conditions.

Rated Current and RMS Current (Irms)

Current rating is often expressed as an RMS current, or Irms, which represents the current level a component can carry continuously before its temperature rises by a defined amount, commonly around 40°C above ambient. This figure is a thermal limit rather than an absolute current ceiling, meaning that operating a component close to its Irms rating for extended periods will generate more heat than operating it well below that threshold.

In high-density designs where multiple components sit close together on a board, thermal rise from one part can affect neighboring components, which is part of why Irms is reviewed alongside the overall thermal budget of the board rather than as a standalone figure.

Saturation Current (Isat) and Its Trade-Off with Inductance

Saturation current, or Isat, refers to the current level at which a core begins to lose its magnetic properties, causing inductance to drop by a defined percentage from its rated value. Once a circuit’s operating current approaches this point, inductance decreases, which can affect ripple current and overall converter performance.

Isat and inductance are generally inversely related within a given package size. As an example, within Mentech’s MHA2213SG series, a 220µH part is rated for an Isat of 9A, while a 22µH part in the same physical package is rated for an Isat of 30A. This pattern illustrates why selecting a molded inductor often involves a trade-off between higher inductance and higher current handling within the same footprint, rather than expecting both to increase together.

DC Resistance (DCR) and Power Efficiency

DC resistance, or DCR, contributes directly to conduction losses within a circuit, since current flowing through the winding generates heat proportional to resistance. Lower DCR generally supports better efficiency, particularly in high-current applications where even small resistance values can produce meaningful power loss.

Returning to the same MHA2213SG series, DCR values drop from 103mΩ at 220µH down to 9.48mΩ at 22µH, moving in the same direction as the Isat trend described above. This reinforces why inductance, Isat, and DCR are typically evaluated together as a set rather than reviewed as separate, unrelated specifications when narrowing down a part number.

Operating Temperature Range

The temperature range a component is rated for needs to account for both the ambient conditions of the application and the additional temperature rise generated by the component itself under load. Depending on the series, molded inductors may be rated across different ranges, with some series specified from -40°C to +125°C and others extending from -55°C to +155°C, including the component’s own operating temperature rise.

Confirming that a chosen molded inductor’s rated range, combined with its expected thermal rise at the intended operating current, stays within the component’s specified limits is a standard step before finalizing a design, particularly in enclosed or poorly ventilated housings common in high-density products.

Package Size and Footprint

Package dimensions directly affect how a component fits into an increasingly compact board layout. Mentech‘s molded inductor offerings span a range of footprints; for example, the MHA2213SG series measures approximately 22.5mm by 22.0mm by 12.7mm, while other series, such as the MHB1207SG line, use a smaller 18.0mm by 10.0mm by 9.2mm footprint paired with a very low DCR around 0.50mΩ and a rated current of approximately 43A, illustrating how smaller packages can still support meaningful current levels depending on the internal design and material used.

For high-density applications, comparing footprint against current and inductance requirements together helps avoid over-specifying a larger package than the circuit actually needs, or under-specifying a package that cannot meet the required current handling.

Bringing the Parameters Together

Selecting a molded inductor for a high-density power application generally starts with the inductance value a circuit’s switching topology requires, followed by checking whether the corresponding Isat and Irms ratings at that inductance support the expected operating current with reasonable margin. DCR is then reviewed for its impact on efficiency and heat generation, and the operating temperature range is checked against the thermal environment of the finished product. Package size is typically the final filter applied once the electrical requirements have narrowed the list of suitable parts.

Because these parameters vary meaningfully even within a single manufacturer’s series, as shown by the range of values across the MHA2213SG lineup, reviewing the specific datasheet for each candidate part number remains a more reliable approach than relying on general category assumptions.

Where Manufacturer Support Fits Into the Process

For designs where standard catalog parts do not align precisely with a project’s space or electrical constraints, working with a manufacturer offering both a broad standard catalog and custom development options can simplify the selection process. Mentech, a transformer and inductor manufacturer, provides molded inductor series across multiple footprints and current ranges, along with parameter search and comparison tools intended to help engineers narrow down suitable candidates before requesting detailed datasheets for final verification.

Working through inductance, Isat, Irms, DCR, temperature range, and package size in this order provides a structured way to approach molded inductor selection for power-dense designs, reducing the likelihood of specifying a component that meets one requirement while falling short on another.
